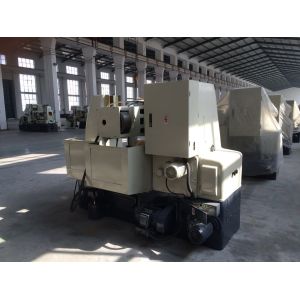

    High Precision Pfauter Gear Hobbing Machine With CNC Control System Multi Axis

    Ask Lasest Price
    Brand Name : Baishun
    Model Number : Y3150
    Certification : ISO; CCC; CE
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 sets/month
    Delivery Time : 20 workingdays
    • Product Details
    • Company Profile

    High Precision Pfauter Gear Hobbing Machine With CNC Control System Multi Axis

    Pfauter gear hobbing machine/ Spur Gears Gear Hobbing Machine Price Y3150-3 From Factory​


    Product Discription


    Y3180/Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece. The machine has the following characteristics:


    1. Raised height for vertical column and increased stroke: The vertical column is made higher (180/130mm increased axial stroke in head slide than Y3180/Y3150 of the same kind) to enable processing of larger tooth width.


    2. Service life of cutting tools is increased by electric tool leap. The longest stroke reaching 180mm, such electric tool leap takes longer hob and greatly increases life the hob.


    3. High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.


    4. Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.


    5. Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.


    6. Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.


    7. External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of larger diameters(Y3180).


    High Precision Pfauter Gear Hobbing Machine With CNC Control System Multi Axis

    Technical ParameterUnitY3150E
    Max work piece diametermm500
    Max modulusmm8
    Max machining widthmm250
    Min machining number of teeth6
    The largest machining spiral angle+-45
    Scope of main tool turning speed and graderpm/grade40-250/9
    Max turning angle of tool240
    Max tool loading dimensions(diameter* length)mm160 *160
    Main motorkw6.45
    Spindle taperMorse 5
    Max axial amount of movement of toolmm50
    Distance between axis line of tool and worktable facemm235-535
    Min distance between tool axis and worktable axismm30
    Distance between back rest under face and worktable facemm380-630
    Machine size(length* width* height)mm2440*1370* 1800
    Weightkg4500

    Product photos for your reference:


    High Precision Pfauter Gear Hobbing Machine With CNC Control System Multi AxisHigh Precision Pfauter Gear Hobbing Machine With CNC Control System Multi AxisHigh Precision Pfauter Gear Hobbing Machine With CNC Control System Multi Axis

    Our Services

    1. 24 Hours after sales service by E-mail or Phone.

    2. 100% response rate.

    3. Engineers available to service overseas.

    4. OEM service is available

    5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you withfactory price.
